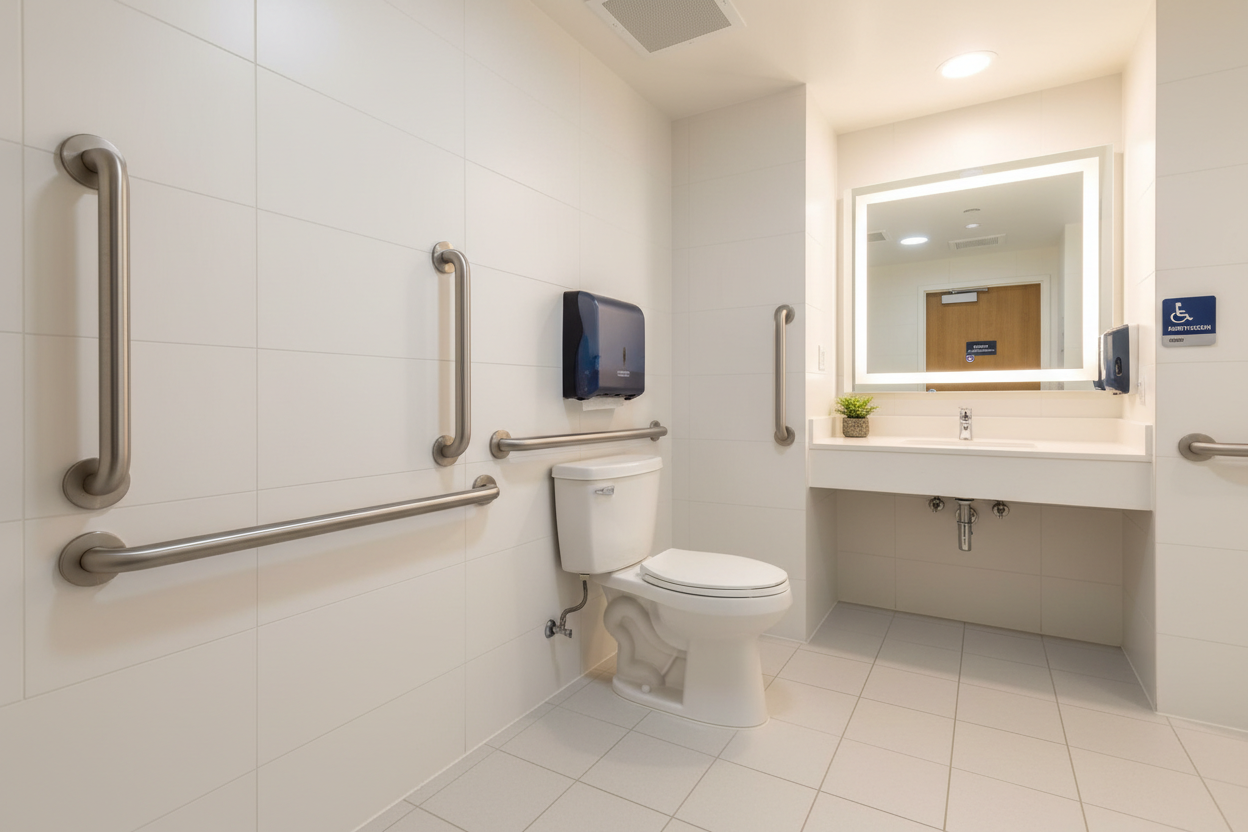

For hospitals, rehabilitation centers, and long-term care facilities, grab bars are not optional fixtures — they are critical safety infrastructure. Improper installation is one of the leading causes of grab bar failure, which can result in patient falls, liability exposure, and costly retrofits. This guide outlines the key installation standards, structural requirements, and acceptance criteria that procurement and facilities teams should know before specifying or approving a grab bar installation project.
1. Load-Bearing Requirements
A grab bar must withstand significant force in real-world use. Industry and regulatory standards typically require:
- Static load: Minimum 250 lbs (113 kg) of downward force without failure
- Lateral load: Minimum 250 lbs applied horizontally
- ADA Standards (US): ANSI A117.1 requires grab bars to resist a 250 lbf (1,112 N) force in any direction
- EN Standards (EU): EN 12182 and related norms specify similar structural performance thresholds
Procurement tip: Always request third-party load test certificates from suppliers. Longhua Accessibility Products provides test reports compliant with ADA and EN standards upon request.
2. Substrate and Wall Backing Requirements
The wall substrate is as important as the bar itself. Grab bars must be anchored into:
- Solid blocking or backing: Typically 2×6 or 2×8 lumber installed between studs during construction or renovation
- Reinforced concrete or masonry walls: Common in hospital construction; use appropriate anchor bolts (e.g., M8 or M10 expansion anchors rated for the load)
- Steel stud walls: Require a backing plate (minimum 3/16" steel) spanning at least two studs
Avoid: Drywall-only anchors, toggle bolts, or plastic anchors — these are not rated for grab bar loads and will fail under stress.
3. Mounting Height and Positioning
Correct positioning ensures usability for the widest range of patients:
| Location | Recommended Height (from floor) |
|---|---|
| Toilet side wall | 33–36 inches (840–915 mm) |
| Toilet rear wall | 33–36 inches (840–915 mm) |
| Shower/wet room | 33–36 inches (side), 48 inches (horizontal) |
| Bathtub | 33–36 inches along tub length |
| Corridor handrail | 34–38 inches (ADA) |
For bariatric wards or facilities serving users with limited mobility, consider installing bars at dual heights (e.g., 28" and 36") to accommodate seated and standing transfers.
4. Bar Diameter and Grip Surface
- Recommended diameter: 1.25–1.5 inches (32–38 mm) — this range accommodates most hand sizes and grip strengths
- Surface finish: Knurled or textured finish preferred in wet areas for slip resistance; satin or brushed stainless steel balances grip and hygiene
- Material: 304 or 316 stainless steel recommended for wet environments; 316 grade preferred in coastal or high-humidity facilities
5. Installation Acceptance Checklist
Before signing off on an installation, facilities managers should verify:
- Bar is anchored into solid backing or structural substrate (not drywall only)
- All mounting screws are stainless steel, minimum M6 diameter
- Bar does not rotate or flex when 250 lbs of force is applied
- Mounting flange covers are flush and sealed (no gaps that trap moisture)
- Bar height and position conform to ADA/EN or local code requirements
- Installation documentation and load test certificates are filed
6. Maintenance and Inspection Schedule
Even correctly installed grab bars require periodic inspection:
- Monthly: Visual check for corrosion, loose flanges, or damaged finish
- Quarterly: Manual load test — apply firm downward and lateral pressure; bar should not move
- Annually: Full inspection by facilities team; replace any bar showing corrosion at mounting points
Conclusion
Specifying the right grab bar is only half the job — correct installation to structural and regulatory standards is what ensures patient safety and long-term performance. When evaluating suppliers, prioritize those who can provide load test documentation, material certifications, and technical support for installation queries.
For bulk procurement inquiries or custom specifications (length, finish, mounting configuration), contact the Longhua Accessibility Products team for a quote.
